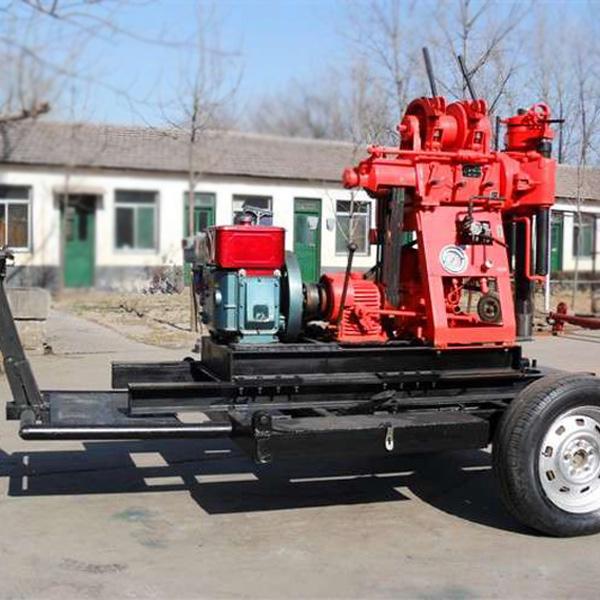

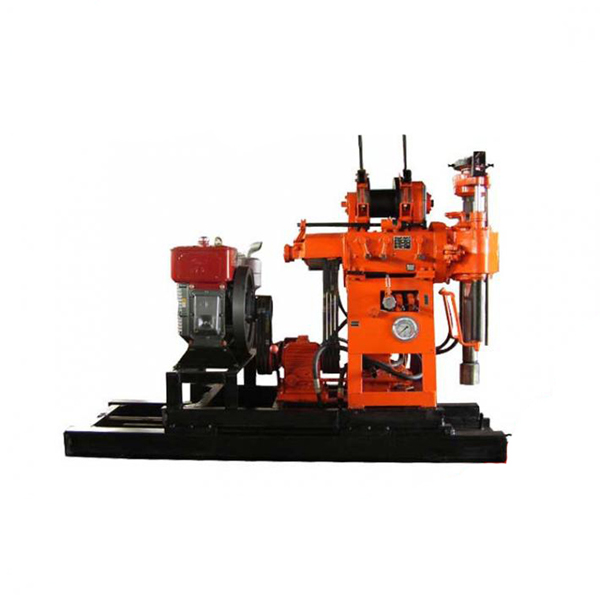

XY150A Truck Mounted Borehole Drilling Rig for Water

Drilling depth

180m

Pump output volume

95L/min

Open hole diameter

150mm

max pressure of pump

1.2MPa

End hole diameter

75mm

oil pump model

CB1-D308

dip angle of drilling rig

0-360

diesel engine model

ZS1110

corotate speed

of gyrator vertical shaft

115,243,388,652,833 roll/min

Diesel engine power

14.7KW

hoist lifting speed

0.265,0.554,0.879,1.486,1.943 M/S

drilling rig size (length*width*height) (mm)

1796*920*1440

hoist capacity

15KN

weight without power

600
