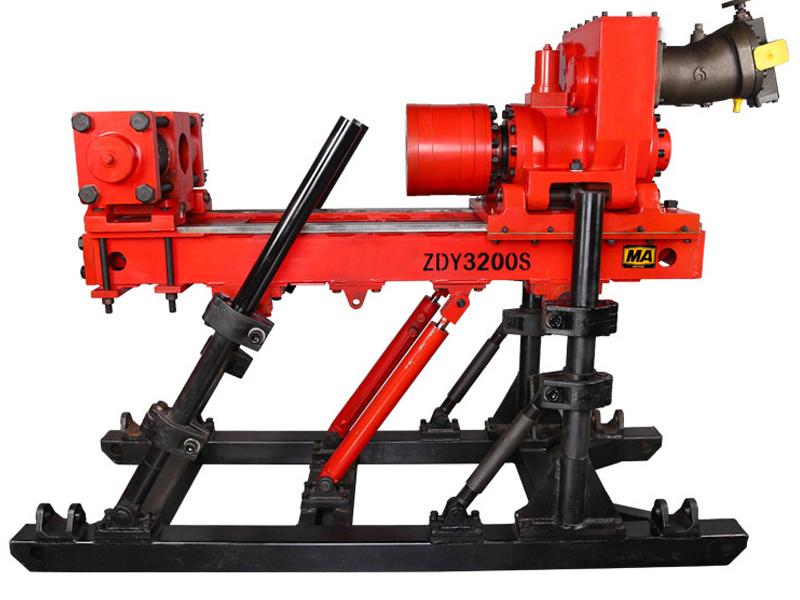

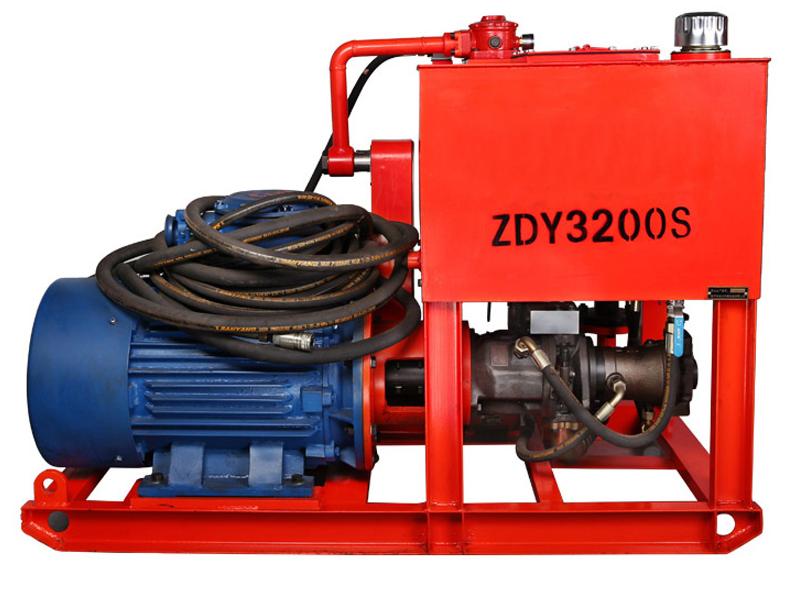

ZDY3200S full hydraulic drilling rig with power head is a full hydraulic tunnel drilling rig with low speed, large torque and large diameter. The drilling rig provides necessary drilling equipment for drilling large diameter gas drainage holes and other engineering holes in coal mines. The machine has the advantages of reasonable structure, advanced technical performance, strong process adaptability, labor-saving operation, safety and reliability, good disintegration and convenient relocation. It can meet the needs of drilling for various purposes in underground coal mines, such as gas drainage, water injection and other engineering holes, and can also be used in surface engineering construction. It is mainly used in large-caliber cone drilling, also suitable for large-caliber cemented carbide drilling and percussive rotary drilling.
|
Item |
unit |
ZDY660 |
ZDY1250S |
ZDY1900S |
ZDY3200S |
ZDY4000S |
|
Rated torque |
N.m |
660 |
1250N.m |
1900N.m |
3200N.m |
4000N.m |
|
Drilling depth |
m |
150/100 |
300/200/100M |
300/200/100M |
300/200/100M |
350/200/100 |
|
Drill pipe diameter |
mm |
Φ42/Φ50 |
Φ42/Φ50/Φ63.5 |
Φ63.5/Φ73 |
Φ63.5/Φ73 |
Φ63.5/Φ73 |
|
Drilling angle |
° |
±90° |
0～±90° |
0～±90° |
0～±90° |
0～±90° |
|
Rated Rotating speed |
r/min |
50-300 |
50-250r/min |
50~270r/min |
50~210r/min |
50~280r/min |
|
Pushing ability |
KN |
27 |
36KN |
77KN |
77KN |
100KN |
|
Pulling ability |
KN |
40 |
52KN |
112KN |
112KN |
150KN |
|
Push/Pull stroke |
mm |
650 |
600 |
600 |
800 |
800 |
|
Min. working height |
mm |
1000 |
1000 |
1000 |
1000 |
1100 |
|
Max.Working height |
mm |
2100 |
2100 |
2100 |
2100 |
2100 |
|
power |
KW |
15 |
22KW |
37KW |
37KW|45KW |
55KW |
|
Whole Machinery weight |
kg |
1100kg |
1350kg |
2100kg |
2200KG |
2500kg |
|
Drill machine weight |
kg |
600kg |
800kg |
1250kg |
1200KG |
1500kg |
