YT23D Air Leg Rock Drill for Hard Rock

1. The YT23D Air Leg Rock Drill for Hard rock has good performance under low pressure; it is suitable for act impetus with long air pipe and small air compressor. 2.YT23D Air Leg Rock Drill for Hard

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of YT23D Air Leg Rock Drill for Hard Rock

1. The YT23D Air Leg Rock Drill for Hard rock has good performance under low pressure; it is suitable for act impetus with long air pipe and small air compressor.

2.YT23D Air Leg Rock Drill for Hard Rock is use for drilling in mines, quarries, railway construction, water conservancy and national defense project facility.

3. When it is matched with Model FY200A oil reservoir and Model FT160A or FT160B air-leg, it can perform wet drilling under various of rocks at a clinic and incline orientation, it can also use in the trolley without Air-leg.

4. YT23D Air Leg Rock Drill for Hard Rock is a tool for the secondary blasting in quarry and especially for rocking 20mm hose in marble and granite, it has characteristic of low weight, reasonable structure, handy use and little air consumption.

Parameter of YT23D Air Leg Rock Drill for Hard Rock

Model

YT23D

Weight

24 kg

length

668mm

Air pressure

0.35-0.63MPa

Cylinder dia

70mm

Piston stroke

70mm

Impact frequencey(at0.4MPa)

≥28HZ

Impact energy(at0.4MPa)

≥45J

Air consumption     (at0.4MPa)

≤38 L/S

Noise

≤112dB(A)

Water pressure

0.2-0.3MPa

Air pipe (inner dia)

19 mm

Water pipe (inner dia)

13 mm

Bore dia

34-42mm

Bore depth

5m

Shank dimensions(hex*length)

22*08+-1 mm

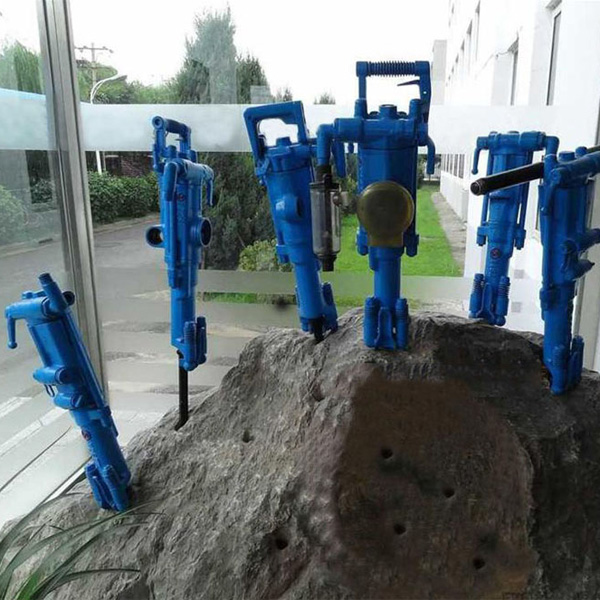

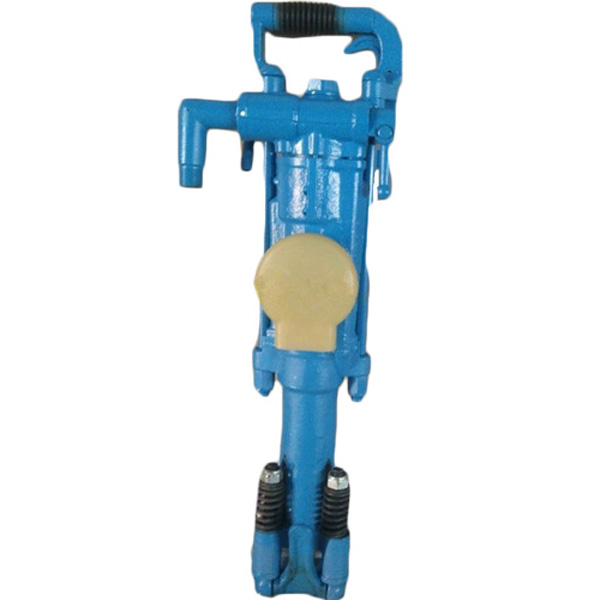

Pictures of YT23D Air Leg Rock Drill for Hard Rock
