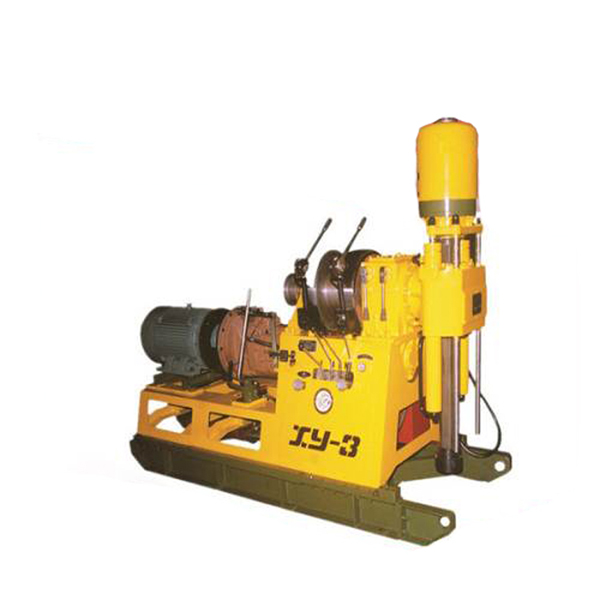

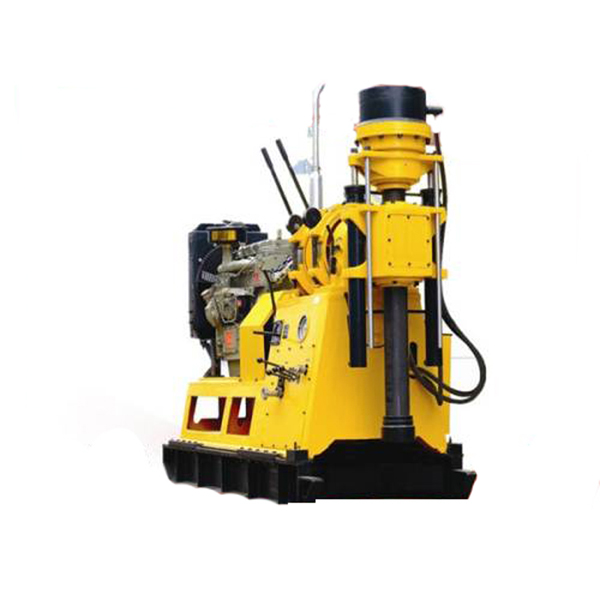

XY-3 Borehole Water Well Drilling Rig
Machine have 8 positive rotation gear, high speed, strong torque, widely scope of application.
Equip hydraulic chuck, XY-3 Borehole Water Well Drilling Rig
Machine can complete no-stopping rotating.
Big inner diameter, use big or middle hexagonal driving lever.
Light in weight, easy disassembling for transportation and applicable to
working conditions in plain and mountain areas.
Contact us to get cost of XY-3 Borehole Water Well Drilling Rig Machine
|
Unity Drilling Rig Machine Specification |
|
|
Drilling depth |
600m |
|
Open hole caliber |
300mm |
|
End hole caliber |
75mm |
|
Drilling angle |
90°~65° |
|
Drill weight (No include power) |
1750kg(Electric Machinery) 1830kg(Diesel Engine) |
|
Unity machine dimensions |
2220×900×1800mm |
|
Distance away from hole |
280mm |
|
Spindle |
|
|
Speed |
|
|
Forward |
57 99 157 270 470 742 1024 |
|
Reverse |
45 212 |
|
Stroke |
560mm |
|
Spindle inner diameter |
96mm |
|
Spindle lifting capacity |
6000kg |
|
hoist |
|
|
Reel caliber |
200mm |
|
Hug floodgate belt width |
90mm |
|
Tightrope caliber |
12.5mm or 14mm |
|
Rell cubic measure |
30m |
|
Single line lifting speed |
0.515 0.894 1.421 1.948m/s |
|
Max single line hoisting capacity |
3000kg |
|
Oil pump |
|
|
F532/F314 |
Duplex gear oil pump |
|
Displacement |
front 32L/min pressure 20Mpa |
|
behind |
14L/min pressure 20Mpa |
|
Power |
|
|
Diesel engine |
395Kz 27HP |
|
Electric motor |
Y180L-4 22kw |
|
Suit scope |
|
