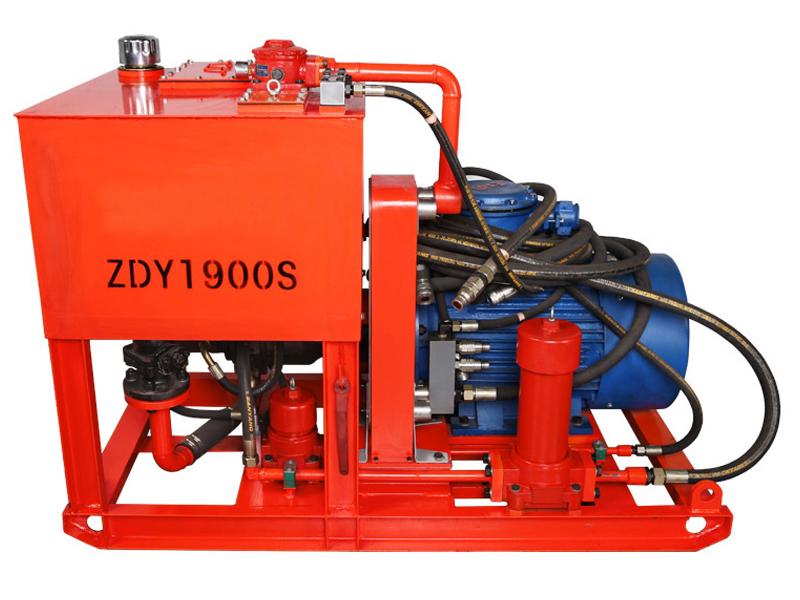

Full hydraulic drilling rig is also called full hydraulic drilling rig. ZDY1900S drilling rig is a power head type full hydraulic drilling rig. It has wide speed range and large torque. It can meet the drilling of various types of coal mine drilling, such as pumping gas holes and water injection holes. Other engineering holes can also be used for surface construction. It is mainly used for large-diameter cone drilling, and is also suitable for large-diameter cemented carbide drilling and impact rotary drilling.
|
Item |
unit |
ZDY660 |
ZDY1250S |
ZDY1900S |
ZDY3200S |
ZDY4000S |
|
Rated torque |
N.m |
660 |
1250N.m |
1900N.m |
3200N.m |
4000N.m |
|
Drilling depth |
m |
150/100 |
300/200/100M |
300/200/100M |
300/200/100M |
350/200/100 |
|
Drill pipe diameter |
mm |
Φ42/Φ50 |
Φ42/Φ50/Φ63.5 |
Φ63.5/Φ73 |
Φ63.5/Φ73 |
Φ63.5/Φ73 |
|
Drilling angle |
° |
±90° |
0～±90° |
0～±90° |
0～±90° |
0～±90° |
|
Rated Rotating speed |
r/min |
50-300 |
50-250r/min |
50~270r/min |
50~210r/min |
50~280r/min |
|
Pushing ability |
KN |
27 |
36KN |
77KN |
77KN |
100KN |
|
Pulling ability |
KN |
40 |
52KN |
112KN |
112KN |
150KN |
|
Push/Pull stroke |
mm |
650 |
600 |
600 |
800 |
800 |
|
Min. working height |
mm |
1000 |
1000 |
1000 |
1000 |
1100 |
|
Max.Working height |
mm |
2100 |
2100 |
2100 |
2100 |
2100 |
|
power |
KW |
15 |
22KW |
37KW |
37KW|45KW |
55KW |
|
Whole Machinery weight |
kg |
1100kg |
1350kg |
2100kg |
2200KG |
2500kg |
|
Drill machine weight |
kg |
600kg |
800kg |
1250kg |
1200KG |
1500kg |
