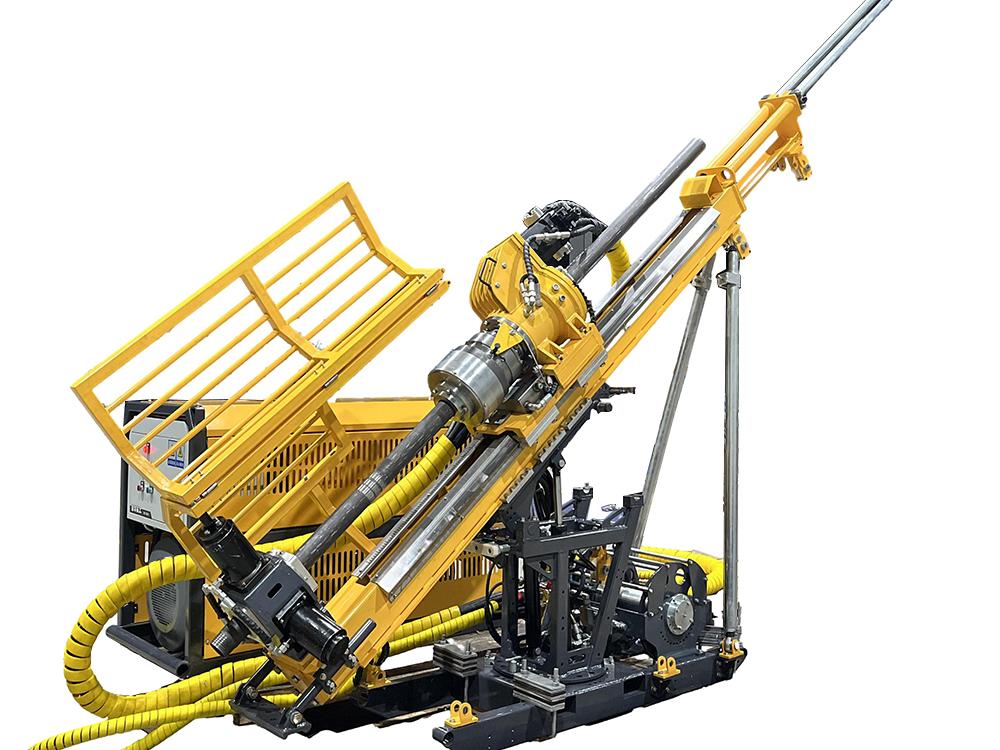

The UX tunnel drilling rigs are operated by hydraulic active control (HDC), hydraulic pilot control (SHE) and digital intelligent control (IAM).
The UX series of drilling rigs incorporate intelligent hydraulic technology for flexible, comfortable operation and high productivity.
Equipped with the AMMEX™ advanced iAM intelligent control system, the UX series drilling rigs enable automated drilling control, automatic stratigraphic adaptation, intelligent parameter adjustment, and simultaneously facilitate remote monitoring of on-site data and remote service support.
With ample torque reserve and a broad speed range, it effectively tackles the challenges of complex formations.
The nitrogen spring drill pipe gripper offers flexible control and reliable operation, achieving synergistic linkage with the power head to ensure safe operation.
Its compact, multi-purpose design with modular layout enables flexible operation in confined spaces and effortless drilling at any angle.
| Technical Parameter | UX300 | UX600 | UX800 | UX1000 |
| Rig type | Fully hydraulic pit drilling rig | |||
| Drilling capacity (B/N/H) | 400 / 300 / 150 m | 600 / 500 / 220 m | 1000 /800 / 520 m | 1200 / 1000 / 620 m |
| Engine power (electric) | 37KW | 55 KW | 75 KW | 90 KW |
| Feed stroke | 1.1 m | 1.8 m | 1.8 m | 1.8 m |
| Max. torque | 650 Nm | 1800 Nm | 2000 Nm | 2250 Nm |
| upgrading power | 38 KN | 65 KN | 75 KN | 89 KN |
| Max. Drill Pipe Diameter | 90 mm | 90 mm | 90 mm | 90 mm |
| Suitable length of drill pipe | 1.5m | 1.5m / 3 m | 1.5m / 3 m | 1.5m / 3 m |
| Weight | 1550Kg | 3150Kg | 3350Kg | 3500 Kg |
| Forms of transport | Towing/manual labor for carrying | |||
