ZDY4000S Full Hydraulic Drilling Machine

Introduction of ZDY4000S Full Hydraulic Drilling Machine

Product Characteristics of ZDY4000S Full Hydraulic Drilling Rig

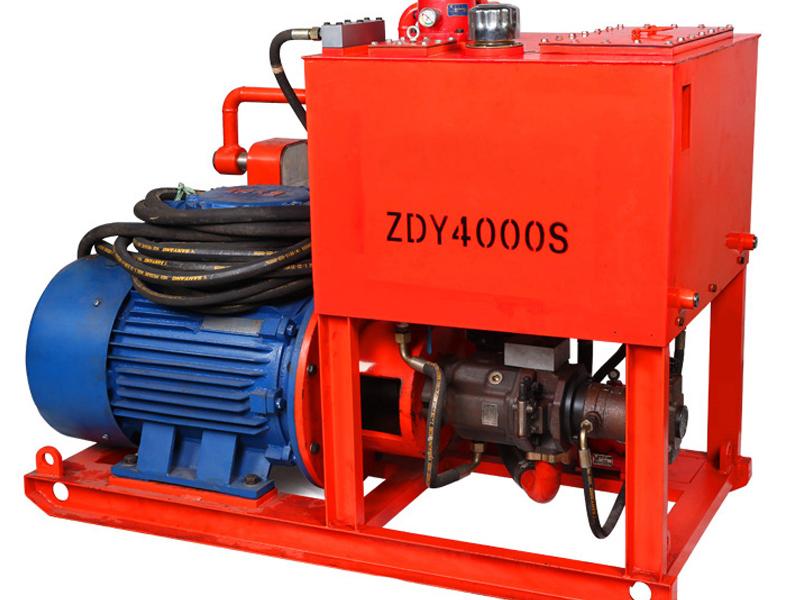

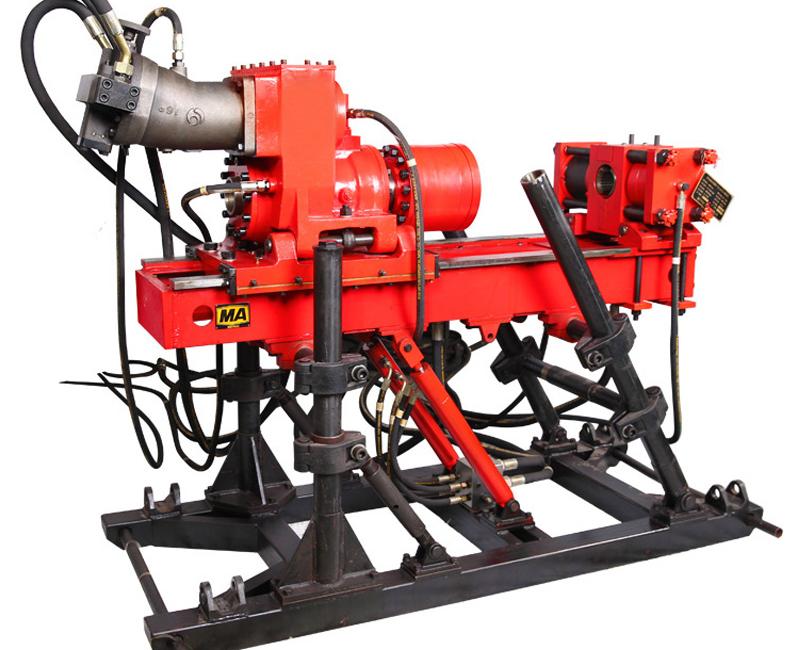

1. The main engine, pumping station and control console of the drilling rig can be flexibly arranged according to the site conditions, good disintegration, and convenient for relocation and transportation;

2. The machine automatically unloads the drilling tool, the gripper slip is easy to take out, and the diameter of the through hole is enlarged, which is convenient for starting the large diameter drilling tool, which can reduce the labor intensity of the worker and improve the work efficiency;

3. The single oil cylinder directly feeds and pulls out the drilling tool, the structure is simple, safe and reliable, and the feeding and lifting ability is large, which improves the ability of the drilling machine to handle accidents;

4. The double pump system is adopted, and the rotation parameters and the feed process parameters are independently adjusted. Variable oil pump and variable motor combination for stepless speed regulation, speed and torque can be adjusted in a wide range, improving the adaptability of the drilling machine to different drilling processes;

5. The diameter of the through hole of the gyrator is large. The replacement of the slip sets of different diameters can hold the drill pipe of different diameters. The length of the drill pipe is not limited by the structural size of the drill itself;

6. Adjusting the inclination of the fuselage with the support cylinder is convenient and labor-saving, safe and reliable;

7. Through the centralized operation of the console, the personnel can be away from the orifice for a certain distance, which is conducive to personal safety;

8. The hydraulic system protection device is complete, which improves the reliability of the drilling machine. The hydraulic components adopt domestically advanced and shaped products, and the performance is stable and reliable, and the versatility is strong.
