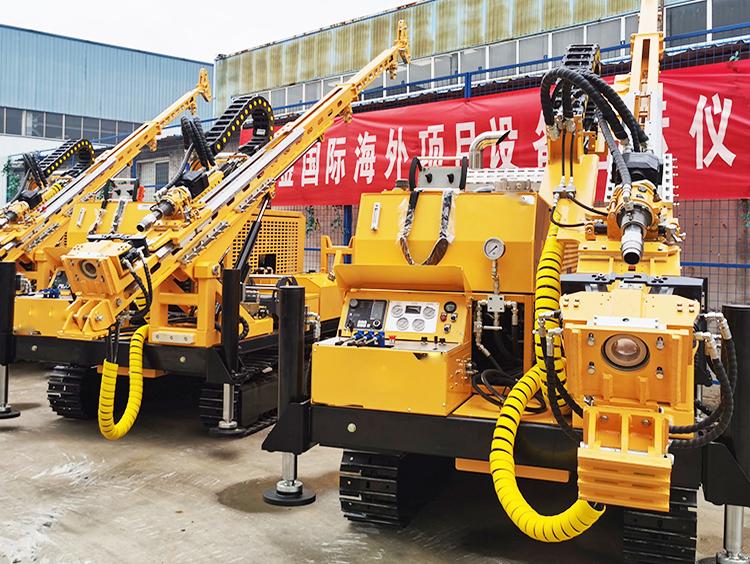

CX series drilling rigs are equipped with sophisticated hydraulic control system, suitable for medium and deep hole surface core drilling, convenient and flexible operation, high productivity and wide range of applications.
The medium shallow hole models are equipped with specially designed top drive powerheads for flexibility and convenience.
The medium and deep hole models are equipped with Christensen chuck powerheads, Funk gearboxes, and advanced technology nitrogen spring grippers for precise control and reliable operation.
The models can be equipped with travelling tracks and wheeled chassis, which are suitable for relocating and transporting in different terrain conditions.
| Technical Parameter | CX600 | CX800 | CX1200 | CX1600 |
| Rig type | Fully hydraulic rock core drilling rig | |||
| Drilling capacity (B/N/H) | 650 / 550 / 300 m | 850 / 650 / 350 m | 1200 / 1000 /680（P300 m） | 1600 / 1250 / 880 (P570 m) |
| Diesel power | 95 KW | 120 KW | 140 KW | 153 KW |
| Feed stroke | 1.8 m | 1.8 m | 3.5 m | 3.5 m |
| Max. torque | 15 KN | 25 KN | 40 KN | 60 KN |
| upgrading power | 105 KN | 105 KN | 118 KN | 138 KN |
| Max. Drill Pipe Diameter | 117 mm | 117 mm | 117 mm | 117 mm |
| Length of drill pipe | 1.5 m | 1.5 m | 3 m | 3/6 m |
| Weight | 6500 Kg | 7500 Kg | 9000 Kg | 12000 Kg |
