Hydraulic mine drilling rig machines are mainly used for water exploration, gas drainage, dust-proof water injection, various engineering holes and geological structure holes at different angles in the mine, and can also be used for mine exploration and core taking. Also for carbide (diamond) drill bit rotary drilling, and be matched with different drill pipe and drill bit to adapt to different drilling requirements.

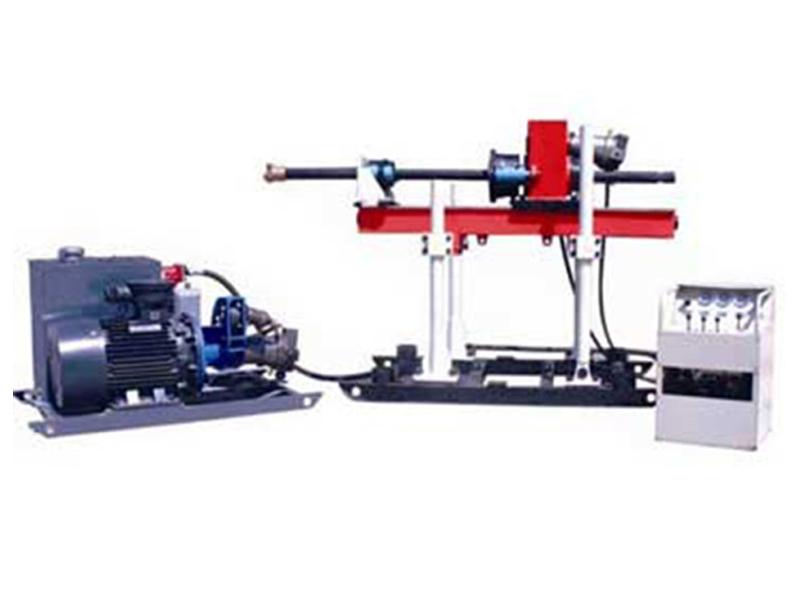

The whole machine is composed of four parts: main engine , pump station, control console and crawler body. It adopts double pump system.
|
Item |
unit |
ZDY660 |
ZDY1250S |
ZDY1900S |
ZDY3200S |
ZDY4000S |
|
Rated torque |
N.m |
660 |
1250N.m |
1900N.m |
3200N.m |
4000N.m |
|
Drilling depth |
m |
150/100 |
300/200/100M |
300/200/100M |
300/200/100M |
350/200/100 |
|
Drill pipe diameter |
mm |
42/50 |
42/50/63.5 |
63.5/73 |
63.5/73 |
63.5/73 |
|
Drilling angle |
° |
±90° |
0～±90° |
0～±90° |
0～±90° |
0～±90° |
|
Rated Rotating speed |
r/min |
50-300 |
50-250r/min |
50~270r/min |
50~210r/min |
50~280r/min |
|
Pushing ability |
KN |
27 |
36KN |
77KN |
77KN |
100KN |
|
Pulling ability |
KN |
40 |
52KN |
112KN |
112KN |
150KN |
|
Push/Pull stroke |
mm |
650 |
600 |
600 |
800 |
800 |
|
Min. working height |
mm |
1000 |
1000 |
1000 |
1000 |
1100 |
|
Max. working height |
mm |
2100 |
2100 |
2100 |
2100 |
2100 |
|
Power |
KW |
15 |
22KW |
37KW |
37KW|45KW |
55KW |
|
Whole machinery weight |
kg |
1100kg |
1350kg |
2100kg |
2200KG |
2500kg |
|
Drill machine weight |
kg |
600kg |
800kg |
1250kg |
1200KG |
1500kg |
