Y26 Small Air Rock Drill Hammer

Y26 pneumatic rock drill is an important tool for rock drilling operation in mines, railway, communication and water conservancy projects. Suitable for making horizontal and inclined blast-holes in me

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Y26 Small Air Rock Drill Hammer

Y26 pneumatic rock drill is an important tool for rock drilling operation in mines, railway, communication and water conservancy projects. Suitable for making horizontal and inclined blast-holes in medium-hard and hard rocks. Computer controlled drilling machine from the factory run test bed, grasp the dynamic characteristics of each product to avoid the occurrence of human error to ensure that the manufactured products of excellent quality and superior performance.

Main Characteristics of Y26 Small Air Rock Drill Hammer

1. The use of modern design means, performance of each product is optimized.

2. For all operating agencies were arranged according to ergonomic principles, to ensure that the products of high-performance, high efficiency and convenience of operation, security.

3. Quality materials and scientific and forging, all reflect the "quality " content, to ensure that the products of high strength, high wear resistance and impact resistance.

4. CNC machining, Uni case automatic line treatment, given "quality" of the guarantee and the "tough" self-confidence.

Parameter of Y26 Small Air Rock Drill Hammer

Weight

26

kg

Overall length

650*534*125

mm

Dia.of cylinder

70

mm

Stroke

70

mm

Rock drill frequency

≥23

HZ

Idling rotational speed

≥200

r/min

Inner Dia.of air pipe

19

mm

Inner Dia.Of the water pipe

13

mm

Strike power

≥30

J

Working water pressure

0.3-0.35

Mpa

Checking tail size

22*108

mm

Air consume of rock drill

≤47

L/S

Noise

≤124

(db)

Dia.of rock drill hole

34-42

mm

Depth of rock drill hole

5

mm

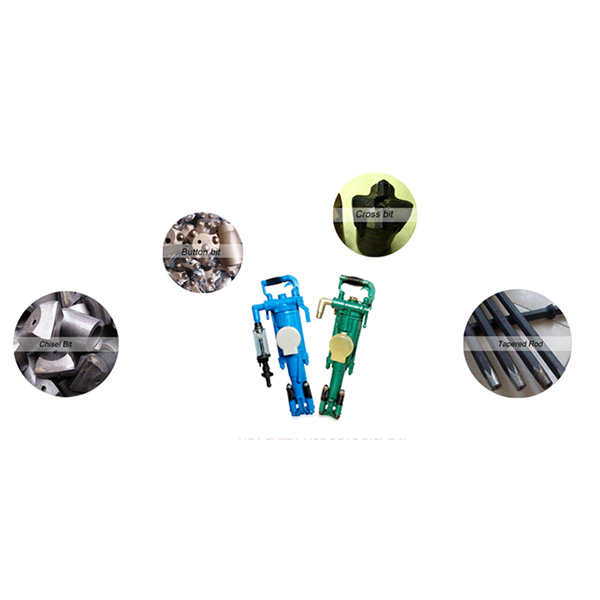

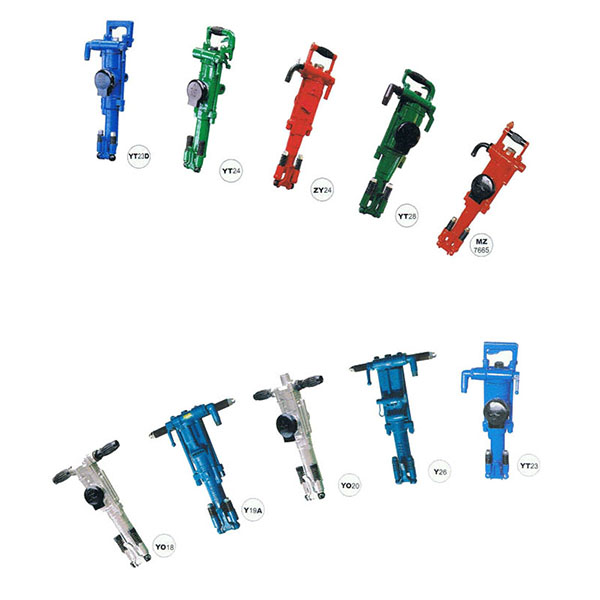

Pictures of Y26 Small Air Rock Drill Hammer
