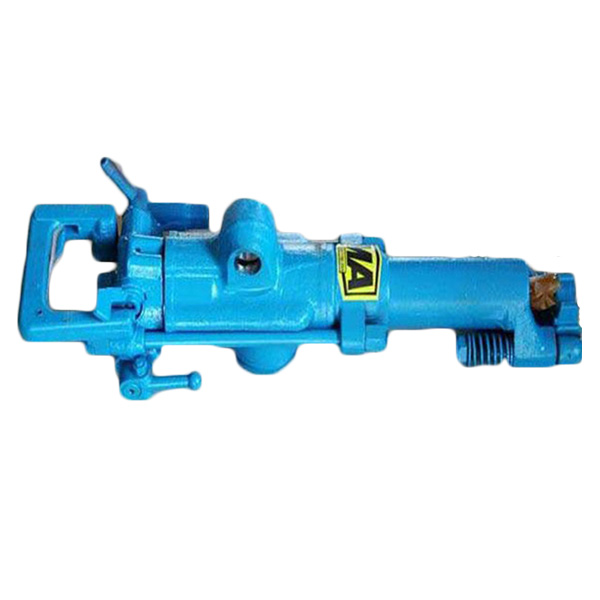

YT24 Hand Held Rock Drilling Machine can be used to digging dry or wet by horizontal holes, vertical holes or angling holes on medium-hard rock or hard rock. Widely used in mines, railway, irrigation and quarry to drill holes and for the second digging holes.
|
Type |
YT24 |
|
|
Weight(kg) |
24 |
|
|
Air consumption(L/s) |
≤67 |
|
|
Bore Dia. (mm) |
Φ34-42 |
|
|
Drilling depth(m) |
5 |
|
|
Shank(mm) |
22×108 |
|
|
Air pressure(MPa) |
0.63 |
|
|
Suitable air-legs |
FT140B |
FT140BD |
|
weight(kg) |
15.6 |
13.9 |
|
Length(mm) |
1687 |
1400 |
|
Feed length (mm) |
1250 |
965 |
