TPB-90 Handheld Pneumatic Jackhammer

TPB-90 Handheld Pneumatic Jackhammer, aks paving breaker, has been rebuilt to like new condition by a professional air tool mechanic. TPB Series handheld pneumatic jackhammer has for models as TPB-3

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of TPB-90 Handheld Pneumatic Jackhammer

TPB-90 Handheld Pneumatic Jackhammer, aks paving breaker, has been rebuilt to like new condition by a professional air tool mechanic.

TPB Series handheld pneumatic jackhammer has for models as TPB-30,TPB-40,TPB-60,TPB-90. TPB-30 & TPB-40 Paving Breakers are lightweight rugged tools designed for light to medium construction jobs,such as demolition of floors,pavement,concrete and masonry walls. Note:TPB-30 available in 7/8 and 1 shank .
TPB-40 1*4-1/4 only. TPB-60 & TPB 90 Breakers are heavy duty demolition tools designed for the toughest of jobs with high productivity,Such as asphalt cutting,reinforced concrete,boulders,pavement and rock outcrop to mention a few. Note:PBB-60 and TPB-90 available in 1-1/8 & 1-1/4 shanks.

Parameter of TPB-90 Handheld Pneumatic Jackhammer

Model

TPB40

TPB60

TPB90

Piston diameter

44mm

57.15mm

66.67mm

Piston stroke

100mm

146mm

152mm

Impact frequency

900 minute/Time

1250 minute/Time

1400 minute/Time

Net weight

18kg/39.6lbs

30kg/60lbs

42kg/92.4lbs

Total length

660mm

645mm

723mm

Air consumption

1.6m3/minute

2.0m3/minute

2.2m3/minute

Hose size

19mm(3/4inch)

19mm(3/4inch)

19mm(3/4inch)

Shank specifications

1×4-1/4 25X108

1×4-1/4 25X108

1×4-1/4 25X108

Inlet size

3/4pt

3/4pt

3/4pt

Air pressure

0.63Mpa

0.63Mpa

0.63Mpa

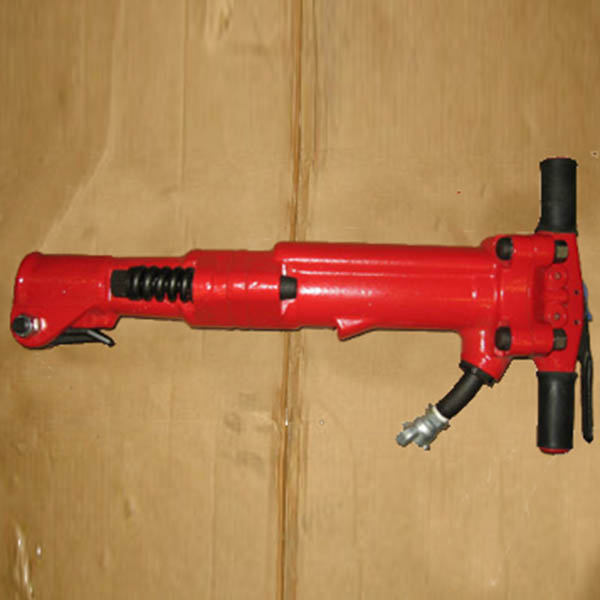

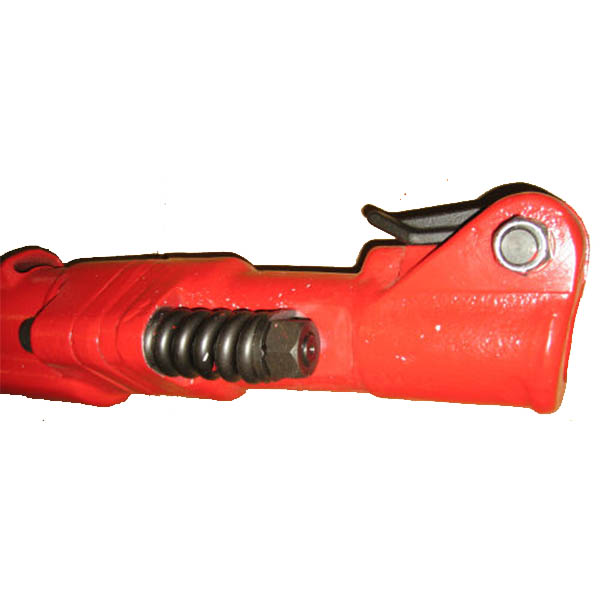

Pictures of TPB-90 Handheld Pneumatic Jackhammer
