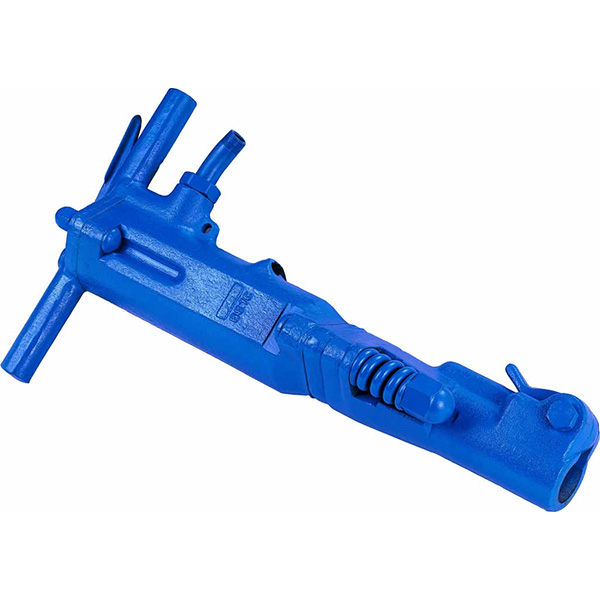

B87C Pneumatic Breaker Hammer is a pneumatic instrument manufactured with the mature technology of America Gardener Denver Corporation.
B87C Pneumatic Breaker Hammer is more powerful in breaking ferro concrete, rocks and asphalt. boasting greater efficiency and durability, it suits the requirements of breaking outsized, super-thick and hard objects.It is ideal machinery for the substructural construction of mines, bridges, roads and civil infrastructure.
|

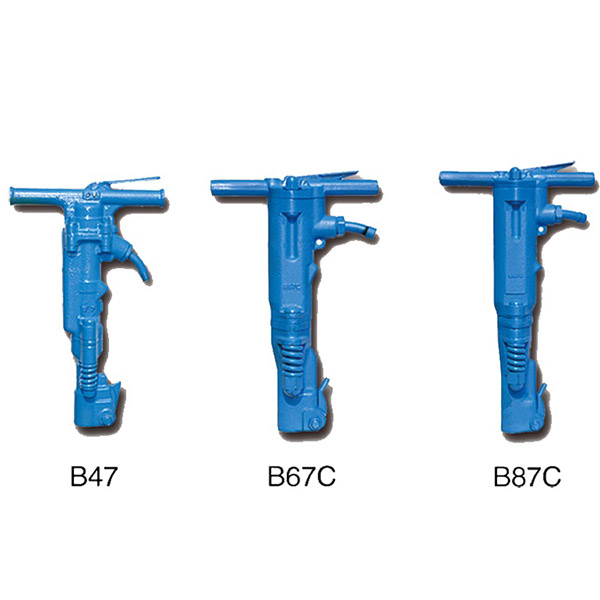

Model |
B47 |
B50 |
B67C |
B87C |
B90 |
|
length |
550mm |
660mm |
615 mm |
686 mm |
745mm |
|
weight |
21.5kg |
18kg |
30 kg |
39 kg |
34Kg |
|
Air pressure |
0.63mpa |
0.63mpa |
0.63mpa |
0.63 Mpa |
0.63 Mpa |
|
impacting frequency |
21.6hz |
22 hz |
24 hz |
18 hz |
16HZ |
|
gas consumption |
23l/s |
33 l/s |
42 l/s |
55 l/s |
27L/s |
|
Bit Head Size |
25×108 mm |
25×108 mm |
25×108 mm |
32×152mm |
32×152mm
|
