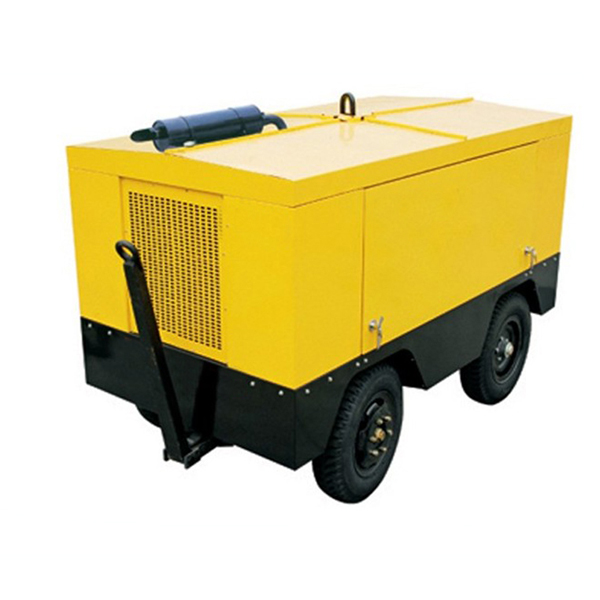

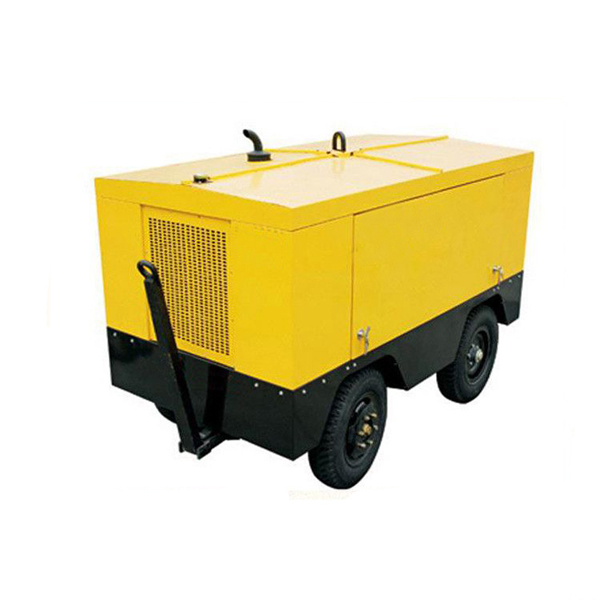

Engineering Piston Air Compressor for Rock Drilling are frequently used in rock drilling, mining and tunneling areas and small piston compressors can be used for auto and truck repair shops, service businesses, craftwork spraying, cosmetics, tattoo, tanning, hobbies/models, and fingernail painting, it can be used for providing air many industrial, laboratory etc.
1. Discharge capacity: 5.5m3/min---25m3/min
2. Power: 46kw, 65kw, 70kw,
110kw, 132kw, 150kw
3 Discharge pressure: 0.7, 1.0,
1.2, 1.3, 1.7Mpa
4. wheel available: 2 wheels
and 4 wheels
5. brand sell and hot sale for
all of the world
|
model |
CVFY-12/7 |
|
|
level 1 cylinder |
number |
2 |
|
diameter |
265 |
|
|
Level 2 cylinder |
number |
2 |
|
diameter |
160 |
|
|
capacity |
m3/min |
12 |
|
cfm |
424 |
|
|
pressure |
Mpa |
0.7 |
|
psig |
102 |
|
|
motor |
diesel engine |
6BT5.9-C118-10(118KW,160HP) |
|
net weight |
KG |
2700 |
|
dimension |
L*W*H(mm) |
3850*1700*2300 |
