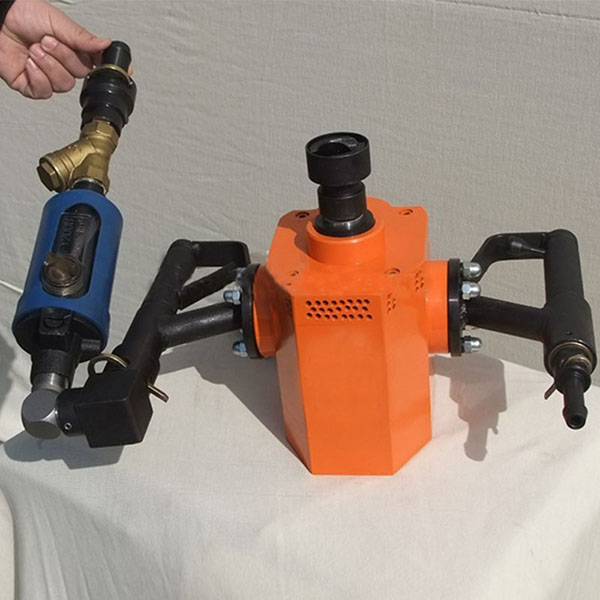

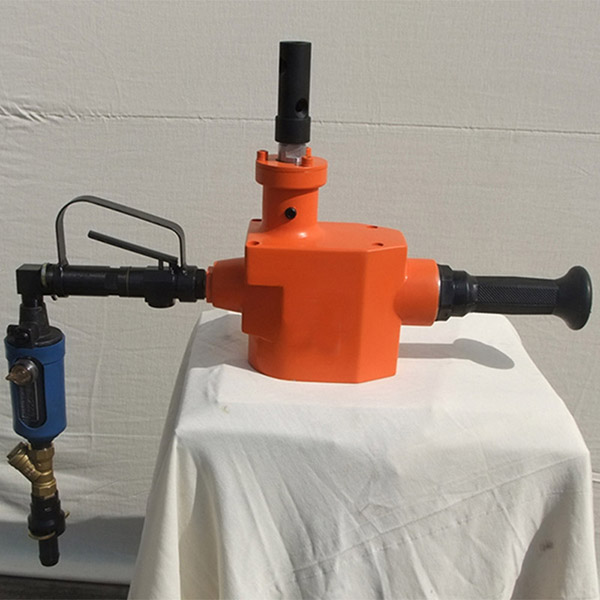

ZQS Pneumatic Anchor Rock Bolt Drilling Rig is suitable for rock bolting in roadway and half roadway where the hardness of rock is less than or equal to f6. It can not only drill rock bolt hole, but also stir and install resin cartridge type rock bolt.
|
Model |
ZQS-60/2.1 |
ZQS-50/1.7 |
ZQS-35/1.6 |
|
Working pressure(Mpa) |
0.4-0.63 |
0.4-0.63 |
0.4-0.63 |
|
Rated pressure(Mpa) |
0.5 |
0.5 |
0.5 |
|
Rated speed(r/min) |
330 |
320 |
440 |
|
Rated torque(N.m) |
60 |
50 |
35 |
|
Stall torque (N.m) |
70 |
57 |
55 |
|
No-load speed(r/min) |
≥1000 |
≥1000 |
≥1000 |
|
Gas consumption(m3/min) |
4 |
4 |
4 |
|
Water flushing pressure (Mpa) |
0.6~1.2 |
0.6~1.2 |
0.6~1.2 |
|
Noise(dBA) |
≤95 |
≤95 |
≤95 |
|
Total weight(Kg) |
20 |
13.5 |
13.5 |
