Introduction of XY-4 Water Boring Drilling Rig Machine

Introduction of XY-4 Water Well Drilling Rig Machine

XY-4 Water Well Drilling Rig Machine is applicable to the exploration, geophysical exploration, road and building exploration and small Water Well Drilling Rig, etc Features of XY-4 Water Boring Drillin.

Introduction of XY-4 Water Well Drilling Rig Machine

XY-4 Water Well Drilling Rig Machine is applicable to the exploration, geophysical exploration, road and building exploration and small Water Well Drilling Rig, etc

Features of XY-4 Water Well Drilling Rig Machine

With hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity

The ball cassette clamping mechanism, can not achieve stop lever, convenient operation, safe and reliable.

Handle concentrated, easy to operate. Equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master hole

Compact structure, drilling machine, water pump and engine (diesel or motor) assembled on the same base, occupying the airport area is small. Decomposition and light weight, easy to move.Free Consultation Complete After-Sales Service.

Parameter of XY-4 Water Well Drilling Rig Machine

Model

XY-4

drill hole depth

42drill rod m

1000


50 drill rod m

700

Hole Angle

0-360

Spindle stroke mm

600

Bore dia mm

68

maximum lifting load KN

80

The vertical pressure KN

60

The biggest up pulling force KN

150

maximum torque KN

640

Hoist the maximum lift KN

30

Dynamic power (electromotor) KW

30

diesel engine(kw)

40,60

Dimension mm

2640*1100*1750

Weight(Do not contain power) kg

1500

Contact us to get cost of XY-4 Water Well Drilling Rig Machine

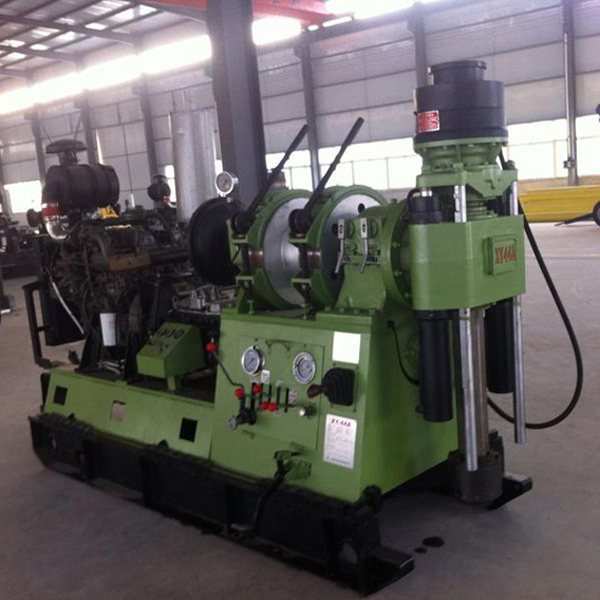

Pictures of XY-4 Water Well Drilling Rig Machine
