The solution to the circuit failure of the gasoline rock drill

If a machine is used for a long time, there will always be some minor problems, so we must have a certain understanding of it, and some minor problems will be solved when they happen. The following editor will explain to you the solution when the circuit of the gasoline rock drill fails. I hope it can help you.

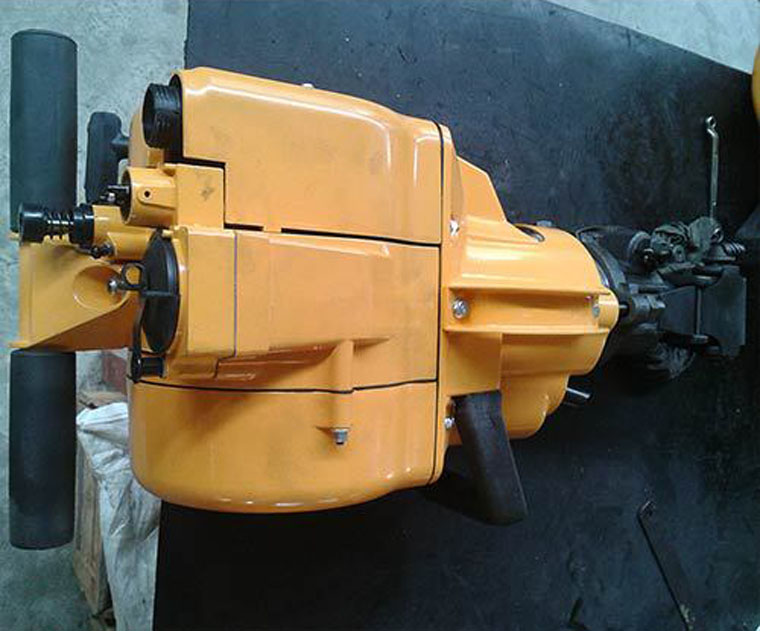

The The internal combustion rock drill is a rock drill powered by fuel combustion. It is a hand-held rock drill tool composed of a small gasoline engine, a compressor, and a rock drill. Mainly used for drilling down, horizontal and upward blast holes less than 45°, replacing a few parts, can be changed to a crusher or tamping machine, used for various shoveling, crushing, digging, splitting and tamping work . Because the machine has its own power and self-produced compressed air to blow the blasthole, it is especially suitable for high mountains, areas without power supply, and compressed air equipment, and temporary projects with high mobility. It is widely used in open-pit mining, excavation of frozen soil, road construction, cable laying and water conservancy construction, etc. rock drill is a rock drill powered by fuel combustion. It is a hand-held rock drill tool composed of a small gasoline engine, a compressor, and a rock drill. Mainly used for drilling down, horizontal and upward blast holes less than 45°, replacing a few parts, can be changed to a crusher or tamping machine, used for various shoveling, crushing, digging, splitting and tamping work . Because the machine has its own power and self-produced compressed air to blow the blasthole, it is especially suitable for high mountains, areas without power supply, and compressed air equipment, and temporary projects with high mobility. It is widely used in open-pit mining, excavation of frozen soil, road construction, cable laying and water conservancy construction, etc.

The solution when the gasoline rock drill circuit breaks down

The sign of the normal working of the gasoline rock drill circuit is: ground the spark plug shell connected to the high-voltage line on the machine. When the flywheel rotates, a strong, audible blue spark is emitted between the spark plugs. If the spark is weak, occasionally or not at all, it means that the circuit is malfunctioning.
